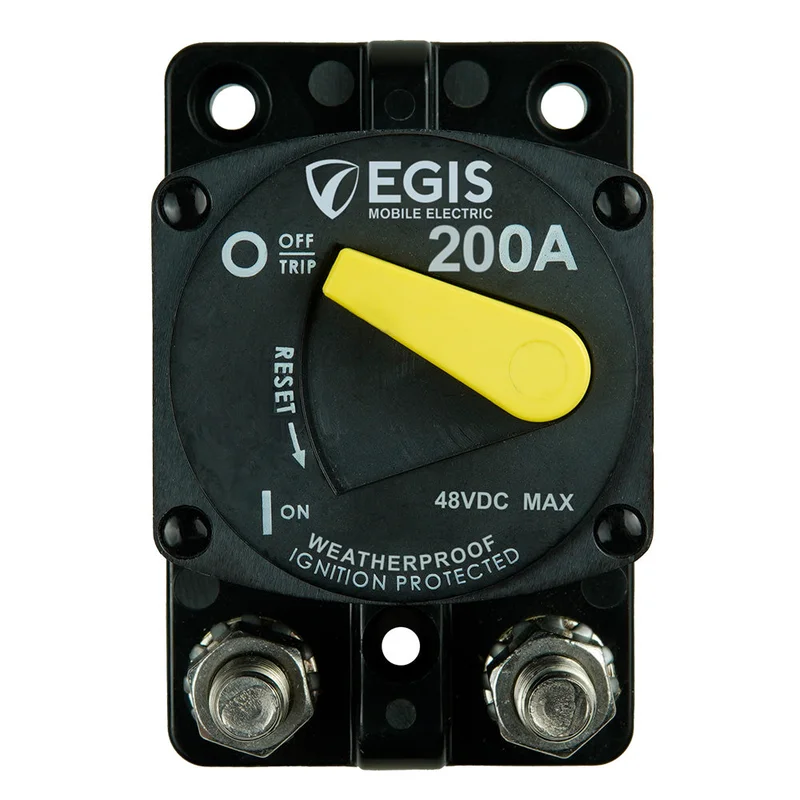

200A Surface Mount 87 Series Circuit Breaker
This 200A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High voltage (48 Vdc) rating – easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
- High electrical/manual switching endurance delivers 2,000 cycles at full current
- High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power
- 4-year warranty – Egis stands behind its product’s ability to meet the user’s needs
Specifications:
- Continuous Current Amps: 200
- Max Voltage: 48
- Cycling Endurance: 2,000
- Interrupt Current /embed/6ieQt9ZwUEM?si=_j4lEAc7lR9v_JDN” frameborder=”0″ allowfullscreen>
