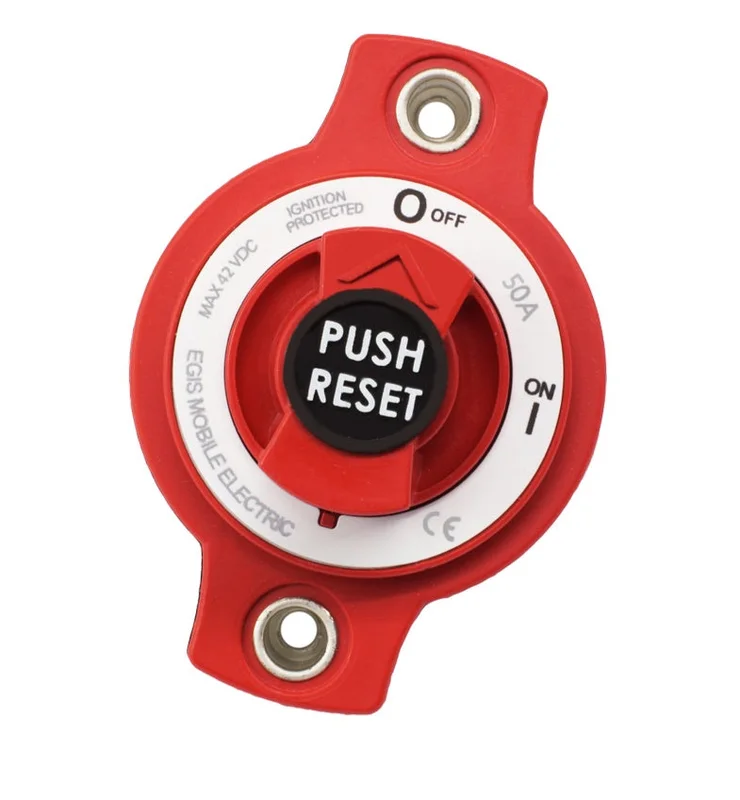

EGIS 50A Mini Breaker Disconnect Switch Panel Mount
Model: 4701-50
- Easy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.
- Stainless Steel Self- Locking HardwareCorrosion and vibration resistant for harsh environment applications.
- Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.?
- Compact SizeFit more circuit switching / protection ona smaller panel
- Made in the USA of high quality components.
- Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product’s ability to meet your needs.
Specifications
| CONTINUOUSCURRENT (AMPS) | 50 |
| MAX VOLTAGE(VDC) | 42 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 3,000 |
| Cycle Switching Endurance | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
