Egis 7610 Programable Acr 160a / 12v

Description

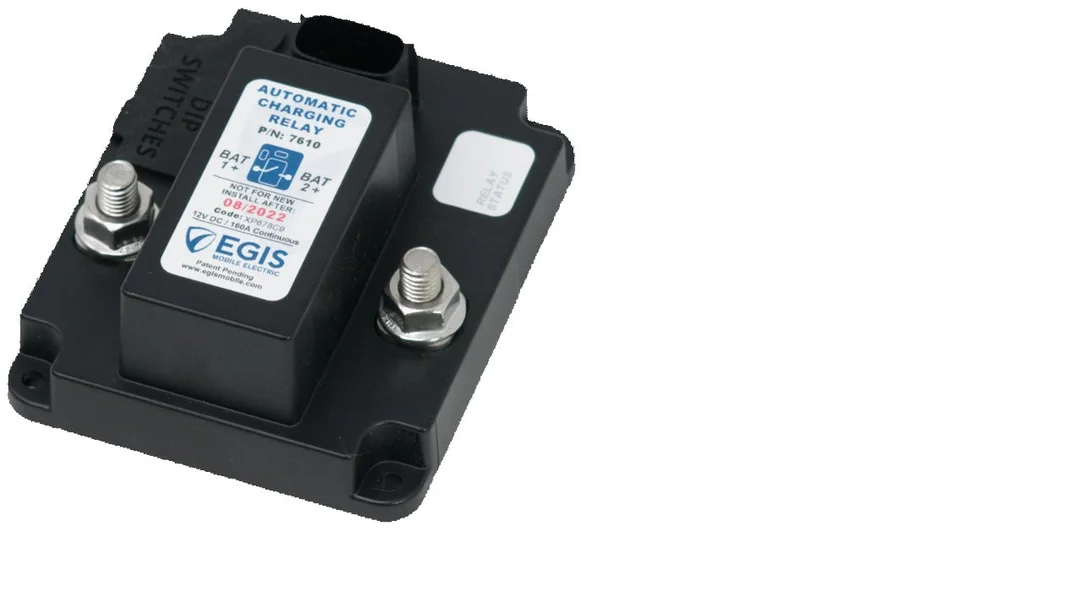

EGIS 7610 Programable ACR 160A / 12v

Model: 7610

• TOP SIDE DIP SWITCHESAccessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.
• STAINLESS STEEL SELF-LOCKING HARDWARE100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
• INTEGRAL I/O CONNECTORSealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4″” quick connect terminals on competitive products.
• CONNECTION OPTIONSComes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)
• EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS)Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.
• LED DIAGNOSTICSProvides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.

Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.

Simple & Robust Installation:Integrated sealed plug eliminates corrosion, includes Deutsch/Amphenol DTM connector harness

Start Assist input option to ensure maximum cranking amps available by allowing manually connecting of batteries via remote switch.

Bullet-proof Construction:Sealed unit, stainless steel hardware, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection.

Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see example)

Specifications
