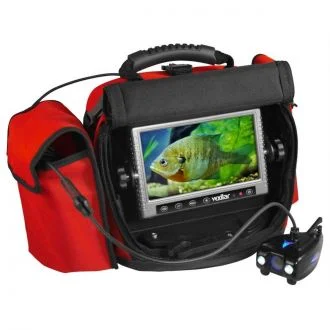

Fish-Scout 800IR Underwater Camera

Description

Details

The Fish-Scout underwater viewing system comes with everything you need to start exploring the underwater world of your favorite lake or river.From the camera to the monitor to the specialized battery power management system, the Fish-Scout is designed to run for over 9 hours on a single battery charge.Learn more, explore more and do it with Vexilar reliability.

Features:
• Enclosed battery compartment with Vexilar 12 volt, 9 amp-hour battery. Includes the fully automatic V-410, 1 amp charger.
• Master on/off power switch.
• Durable soft pack carrying case with padded front panel to protect monitor. Also has easy rear access to battery and master power control.
• Pre-wired with easy-charge jack connector.
• Easy store cable wrap pouch holds 90 feet of super thin cable on a spool with handle. Depth marked every foot.
• Piggyback the cable pouch so you can fit the whole system into a 5 gallon bucket (bucket not included).
• Adjustable support elbow arm for mounting camera near system.
• Includes over-hole suspension arm for mounting camera away from the system.
• ABS internal frame is tough and durable.
• 7″ water resistant color LCD monitor.
• Waterproof camera-to-monitor connection.
• Multi-chamber waterproof camera housing with two infrared lights and internal directional lights.
• CMOS color camera with black and white low light option.

System includes:
• 1/3″ CMOS sensor color/black & white camera
• Multi-chambered waterproof camera housing with two high intensity LED, fully adjustable infrared lights
• 7″ widescreen LCD color monitor
• RCA output jack to watch on big screen TV
• 90 feet of ultra-thin diameter cable
• Durable ABS frame with enclosed battery compartment
• Soft Pack carrying case
• Over hole and case mounted elbow arm support to suspend camera
• 12V, 9 amp-hour battery with 1 amp digital charger
• Master power on switch with easy charge jack pre-wired into system
• Cable and camera holder bag with quick connect buckle
• Designed for “down viewing” angle as well as for open water use while trolling
• Two year factory warranty

Camera Specifications:
• 1/3″ CMOS sensor
• Color + black & white
• Auto Gain control
• Lux: Color 0.4 / B & W 0.07
• 90 degree viewing angle
• 600 lines of resolution
• Cable length: 90 feet with depth marks every foot

Monitor Specifications:
• 7″ 16:9 LCD color monitor
• Automatic light adjustment
• Superior cold weather performance with automatic monitor warming technology
• Monitor resolution: 800 x 480 (Width x Height)
• a-SI TFT active matrix display
• Video Out option
