Description

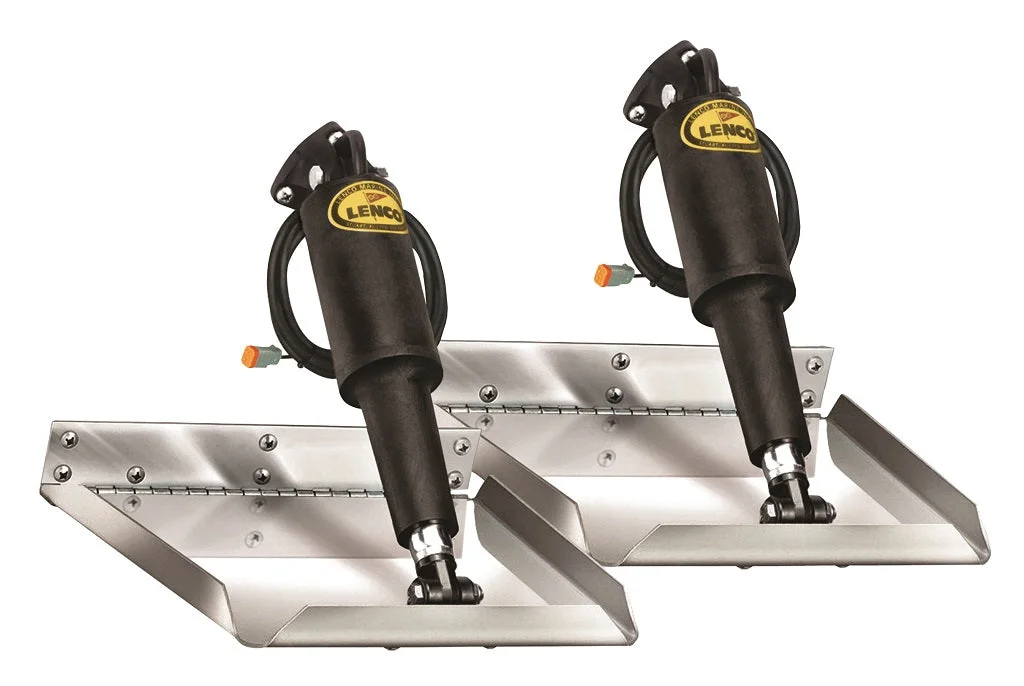

Lenco 12″”x12″” Edge Mount Trim Tab Kit 12v Electro Polished
Model: 15116-101
All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12″ (30.5 cm) blades giving them a 3″ (7.6 cm) lower mounting height. Boat Lengths 14′ (4.3 m) to 30′ (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1″ (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8″ (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Specifications
| L”” X W”” | 12″” X 12″” |
| Boat Length | 17′ — 30′ (4.27m — 5.49m) |
| Hinge Height | 2″” (5.1 cm) |
| Min Transom Height | 11″” (27.9 cm) |
What’s in the Box:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses – 20′ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
