Lenco Standard Tactile Switch With Pigtail Fo Single Actuator Systems

Description

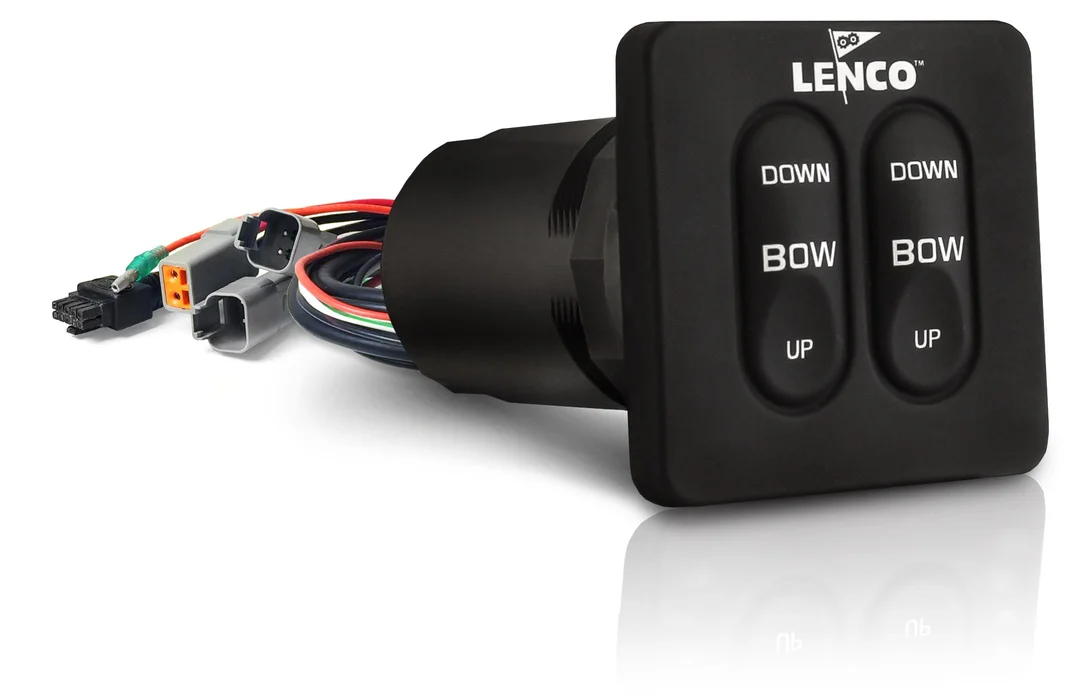

Lenco Standard Integrated Switch Kit – 12 & 24-Volt – Single Actuator Systems

Model: 15169-001

• Simple, quick, Plug & Play installation
• Instant response
• Built-in retractor
• Self-contained key pad with waterproof Plug & Play Deutsch connectors
• Wiring harness length 30″” (76.2 cm) from the back of the switch bezel
• 2 1/16″” hole cut-out size, overall key pad size of 2.75″” x 2.75″”
• 4.08″” clearance required from the back of the key pad’s mounting location

Complete your Lenco single actuator trim tab system with the latest, maintenance-free, Standard (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

What’s in the Box:

• Standard Integrated Switch Kit – 12 & 24-Volt – Single Actuator Systems
• 36″” power pigtail
