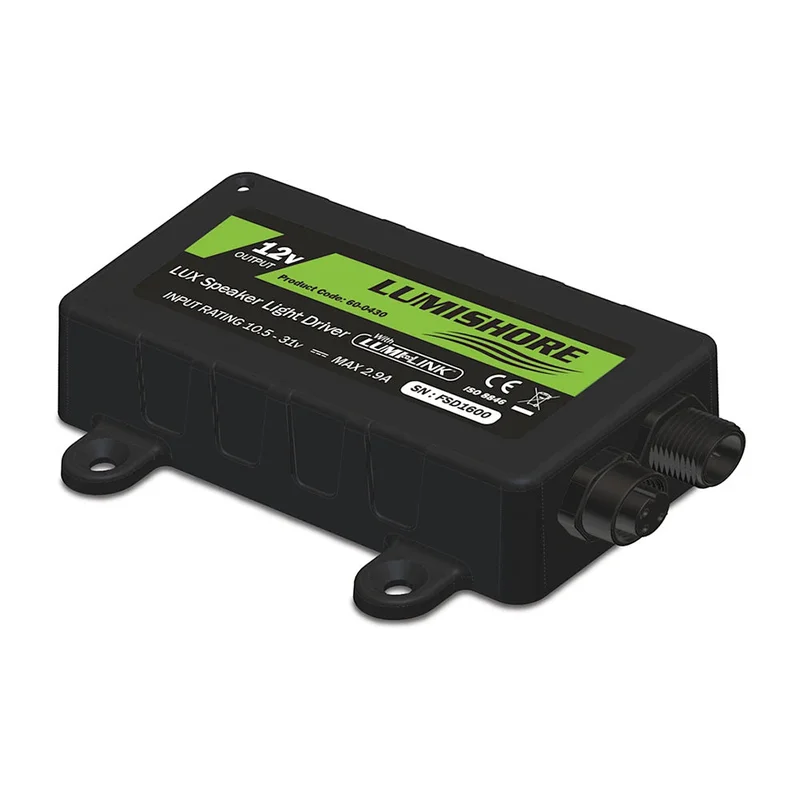

Lumishore LUX Speaker Light Driver [010-04448-00]

Description

LUX Speaker Light Driver

Features:

• Full Spectrum RGB Tunable and White Color Temperature Tunable (CRGBW Speakers)
• Full Spectrum RGB Tunable (RGB Speakers)
• Full Lumi-Link Capability for Lux Smart Lighting
• Specially Designed for Ease of Installation

Specifications:

• Ingress Protection Rating: IP68
• Driver: Multi-Channel Internal Driver
• Supply Voltage Range: 10.5 – 31 V DC
• Max Current Draw (12/24V DC): 5.6A / 2.8A
• Surge Protection: Yes
• ATRB (Automatic Thermal Roll Back): Yes
• Low Voltage Protection: Yes
• Auto Power Control: Yes – Intelligent Multi-Channel Power Management
• “Soft Start” Electronics Protection: Yes
• Reverse Polarity Protection: Yes
• In Rush Current Protection: Yes
• Power Line Noice Suppression: Yes
• Max Cable Length to First Speaker: 5m (16.8′)
• Number of Speakers per Driver: 16
• ISO 8846 (Ignition Protection): Yes
